測試標準

支持GSM、GPRS、EDGE、EDGE Evolution、Mobile WiMAX、LTE FDD/TDD、TD-SCDMA、WCDMA/HSDPA、HSPA+、CDMA2000、1xEV-DO、GPS、Bluetooth、WLAN a/b/g/n、DVB-T、T-DMB、CMMB、FM stereo、Media FLOW

主要特性與技術指標

1）基本模塊：通用RF 功率計和帶有List 模式的CW 發生器，可以完成無線設備的快速校準

2）矢量信號分析儀（VSA）用來進行發射機驗證

3）矢量信號發生器（VSG）用來進行擴展的接收機測試：ARB 模式可以縮短配置時間或在線模式可以處理高數據容量的復雜信號

4）通過直接連接R&SNRP-Zxx 功率探頭可啟動參考RF 功率測量

5）使用集成RF接口可方便地連接到具有復雜RF架構的無線設備

6）當前 先進的圖形化用戶界面（GUI）

7）通過LAN/GPIB 接口進行SCPI 遠程控制

8）支持LXI Class C

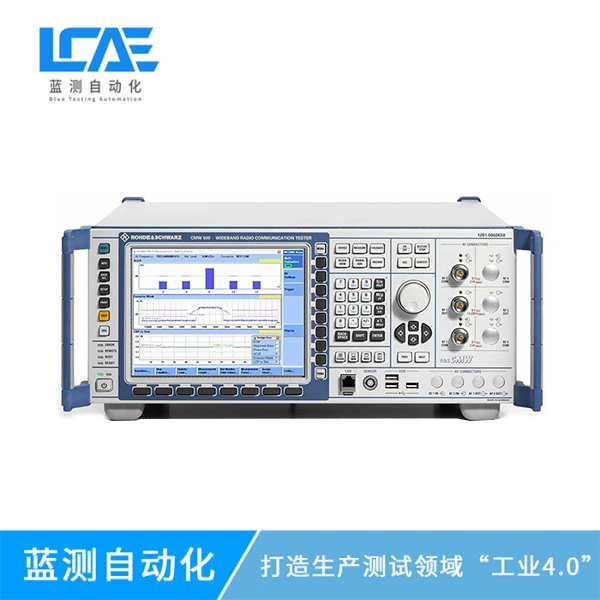

R&S CMW500 是無線設備空中接口測試的綜合性測試儀，R&S CMW500可用在產品開發和生產的所有階段，支持所有常見蜂窩和非蜂窩無線技術。

R&S CMW500是羅德與施瓦茨公司新一代的無線通信綜合測試儀，測量速度 快 精確。它采用R&S智能校準技術，測試速度非?？欤瑫r(shí)集成了矢量信號發生器和分析儀功能，從而為實現先進的非信令校準技術創造了前提。R&S CMW500具有極高的可擴展性、測試速度和測量精度，能夠徹底降低測試成本。

R&S CMW500為生產應用而專門設計：亮點在于精度、可重復性和線性。這些參數對生產領域有直接的影響。這些參數越準確，被歸類為不合格的 DUT 數量就越少，即使他們是符合規范的。內部的溫度感應器自動根據周?chē)鷹l件改變測量精度。當溫度改變或機器開啟的時候，沒有必要進行校準。

R&SCMW500 是到貨后即可投入測試的交鑰匙解決方案。全集成的測試儀配備校準的RF路徑和Press & Go應用程序，可以簡化生成和 新測試序列，以及整個生產測試系統。一體化的架構保證了 大化的測試性能和 小化的測試軌跡，以及 優的功率消耗。

R&S CMW500 是一款能夠?qū)Ξ?dāng)今和將來無線設備（包括從基本手機到 為復雜的PDA）進行快速、精確生產測試的緊湊型解決方案，該多技術平臺使用戶可從始至終實現瘦身式生產線的理念：一臺測量?jī)x器滿足所有射頻測試要求。

R&S CMW500 主要特點

新功能：一款可提供網絡模擬所需的LTE信令功能（"call box"功能）的測試儀，請參見演示

主機：通用型射頻功率計和CW信號發生器，具有List modes，可以快速校準無線設備

發射機驗證所需的矢量信號分析儀（VSA）

擴展接收機測試所需的矢量信號發生器（VSG）：快速設置的ARB模式或大數據量復雜信號分析的聯機模式

功能測試所需的信令功能（網絡模擬）

可直接連接 R&SNRP-Zxx功率探頭，進行參考射頻功率測量

使用集成的射頻接口可輕松連接射頻架構復雜的無線設備

新圖形用戶界面（GUI）

通過LAN/GPIB接口可實現SCPI遠程控制

為L(zhǎng)XI Class C測量做好準備

測試?yán)痰倪^(guò)程控制器采用 WindowsXP操作系統，并可通過Windows遠程桌面實施遠程控制

全能型無線設備測試平臺

無線標準和廣播技術，例如LTE (包括MIMO)、WLAN 或 DVB-T 和RAT之間相關消息

覆蓋開發、驗證和生產所有階段

覆蓋所有協議層，包括從射頻測試和協議測試到端到端應用測試

模塊化和靈活的硬件

采用可配置的、支持MIMO的射頻前端，無需使用外部射頻轉換器就能靈活連接無線設備

可根據頻率、時間、溫度進行全自動路徑校正，測量精度極高。校準間隔時間為兩年

應用專用軟件

矢量信號分析儀和發生器

實時RRC網絡模擬和協議棧

端到端測試時可提供 U-plane數據支持

ARB                                CMW-B110A (硬件)

LTE FDD/TDD            CMW-KM500、KM550、KS500、KT017    KS510、KS550、KW500

TD-SCDMA              CMW-KM750、KW750、KW751

CDMA2000 1xRTT        CMW-KM800、KW800

CDMA2000 1xEV-DO      CMW-KM880、KW880

WCDMA/HSPA/HSPA+      CMW-KM400、KM401、KW400 KG400、KG401、KW401、KW402

GSM/GPRS/EDGE          CMW-KM200、 KG200、 KW200

GPS                    CMW-KM620 、CMW-KM621、CMW-KM622

Bluetooth              CMW-KM610

WLAN a/b/g/n          CMW-KM650、CMW-KM651、CMW-KM700、KT650

DVB-T                  CMW-KM630

T-DMB                  CMW-KV634

MediaFLOW              CMW-KV636

CMMB                  CMW-KV638

FM stereo              CMW-KV645

Mobile WiMAX          CMW-KM700、KW700、KT057信令應用程序

B100A      CMW H100A Baseband Measurement Unit

B110A      CMW H110A ARB+Realtime Baseband Generator Module

B200A      CMW H200A Signaling Unit Universal(SUU)

B230A      CMW H230A 1xEV-DO Signalling Extension Module for H200A

B270A      CMW H270A WiMAX Signaling Extension Module for H200A

B300A      CMW H300A Signaling Unit Wideband (SUW)

B450A      Data application unit

B510A      CMW H510A, four digital IQ interfaces (inputs/outputs/monitor)

B520A      Digital I/Q 5 to 8 H520A

B570A      CMW H570A RF converter module (TRX)

B570B      CMW H570B RF converter module (TRX)

B590A      CMW H590A RF Frontend module

B612A      CMW H612A IEEE Bus Interface Module (single connector)

B612B      CMW H612B IEEE Bus Interface Module (dual connector)

B620A      CMW H620A Digital Video Interface (DVI) Module (only required for units with display/ke

B660A      CMW H660A Option Carrier

B661A      CMW H661A Ethernet Switch Board

B690A      CMW H690A OCXO Module

B690B      CMW H690B OCXO Module (highly stable)

C3     3 years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s).

C5     Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).

DCV-2       Documentation of calibration values

KA700      Permanent CMW license: Application Enabler, extension Convergence Sublayer IPv4, WiMAX(IEEE802.16e)

KB036      Permanent CMW license : Extended Frequency Range 3.3 GHz to 6 GHz

KC420       Permanent CMW License: WCDMA R7 Test Cases 3GPP 34.123 Ciphering GCF WI-101

KC421       Permanent CMW License: WCDMA R7 Test Cases 3GPP 34.123 CPC Tests GCF WI-070

KC422       Permanent CMW license: WCDMA R7 test cases 3GPP 34.123 64QAM tests

KC423       Permanent CMW license: WCDMA R7 test cases 3GPP 34.123 L2 enhancements tests

KF502       Permanent CMW License: LTE FDD MLAPI Basic Procedures

KF503       LTE FDD MLAPI EPS Bearer Verification

KF504       Intra-LTE Handover and Mobility

KG200      Permanent CMW licence: Generator, GSM/GPRS/EDGE, Downlink

KG400      Permanent CMW licence: Generator, WCDMA, Downlink

KG401      Permanent CMW license: Generator, WCDMA HSPA extension of CMW-KG400, Downlink

KM010     Permanent CMW license: FTT spectrum analyzer

KM011     Permanent CMW license: TX measurement "IQ Versus Slot", Uplink

KM012     Permanent CMW license: TX measurement Multi Evaluation List Mode

KM200     Permanent CMW license: TX Measurement, GSM/GPRS/EDGE, Uplink

KM400     Permanent CMW license: TX Measurement, WCDMA, uplink

KM401     Permanent CMW license: TX measurement, WCDMA HSPA, extension of CMW-KM400, Uplink

KM403     Permanent CMW license: TX measurement, WCDMA HSPA+ extension of CMW-KM401, Uplink

KM500     Permanent CMW license: TX measurement LTE FDD, Uplink

KM610     Permanent CMW license: TX measurement, Bluetooth

KM650     Permanent CMW license: TX Measurement WLAN (IEEE 802.11a/b/g)

KM700     Permanent CMW license: TX Measurements, Mobile WiMAX (IEEE 802.16e)

KM701     Permanent CMW license: TX measurement, extension for R&D applications, WiMAX(IEEE802.16e), Wave 1

KM750     Permanent CMW license: TX Measurement, TD-SCDMA, uplink

KM800     Permanent CMW license: TX Measurement, CMDA2000 1xRTT, Reverse Link

KM880     Permanent CMW license: TX Measurement, 1xEV-DO, Reverse Link

KP080       Permanent CMW license: Protocol tester framework. Network emulation

KP400       Permanent CMW license: WCDMA MLAPI interface for netwerk emulation

KP401       Permanent CMW licence:WCDMA CPC extension of API interfaces

KP402       Permanent CMW license: WCDMA 64 QAM extension of API interfaces

KP403       Permanent CMW license: WCDMA Downlink L2 Enhancements, extension of API interfaces

KP405       Permanent CMW license: WCDMA MIMO 2x2 extension of API interfaces for Tx diversity and spatial multiplexing

KP500       Permanent CMW license: LTE FDD MLAPI interface for network emulation

KP501       Permanent CMW license: LTE FDD LLAPI interface for network emulation

KP502       Permanent CMW license: LTE FDD virtual physical layer with SW interface to device under test

KP510       Permanent CMW license: LTE FDD MIMO 2x2 extension of API interfaces for

KP550       LTE TDD Stack extension

KP588       LTE Stack Extension: Handover from LTE to 1xEV-DO

KP880       LTE Stack Extension: CDMA2000 1xEV-DO Support

KS400       Permanent CMW License: WCDMA Signaling

KS401       Permandent CMW license: WCDMA HSPA Signaling

KS500       Permanent CMW license: LTE FDD Signaling

KS700       Permanent CMW license: Signaling (Base Station emulator), Mobile WiMAX (IEEE 802.16e)

KS701       Permanent CMW license: Signaling (Base Station Emulator) extension for R&D applications, WiMAX (IEEE 802.16e),

KT001       Permanent CMW license: Protocol Testing Tool TTCN-2 Editor

KT002       Permanent CMW license: Protocol testing tool TTCN-2 Analyzer

KT004       Protocol Testing Tool TTCN3 Compiler and Editor

KT010       Permanent CMW license: PROJECT EXPLORER, test sequence execution management

KT011       Permanent CMW license: MESSAGE ANALYZER. Protocol message analysis

KT012       Permanent CMW license: MESSAGE COMPOSER. Protocol message editing

KT014       Permanent CMW license: Protocol testing tool, Automation Manager

KT017       LTE FDD Protocol testing monitor (Timed license, 12 months

KT019       Permanent CMW license: PICS/PIXIT Editor

KT051       Permanent CMW license: CMWrun Sequencer Software Tool, General purpose Applications

KT057       Permanent CMW license: CMWrun Sequencer software tool, WiMAX applications

KT700       Permanent CMW license: Message Analyzer software tool, WiMAX(IEEE802.16e) applications, online analysis,

KW200     Permanent CMW license: Enabling WinIQSIM2 Waveforms, GSM/EDGE

KW400     Permanent CMW license: Enabling WinIQSIM2 Waveforms, WCDMA

KW401     Permanent CMW license: Enabling WinIQSIM 2 Waveforms, WCDMA,HSDPA Extension of CMW-KW400

KW402     Permanent CMW license: Enabling WinIQSIM2 Waveforms, WCDMA, HSUPA Extension of CMW-KW400

KW500     Permanent CMW license: Enabling WinIQSIM2 Waveforms EUTRA/LTE

KW610     Permanent CMW license: Enabling R&S WinIQSIM 2 Waveforms, BLUETOOTH

KW630     Permanent CMW license: Enabling WinIQSIM2 Waveforms, DVB

KW650     Permanent CMW license: Enabling WinIQSIM2 Waveforms, WLAN (IEEE 802.11a/b/g)

KW700     Permanent CMW license: Enabling WinIQSIM2 Waveforms, WiMAX (IEEE 802.16)

KW750     Permanent CMW license: Enabling WinIQSIM2 Waveforms, TD-SCDMA

KW800     Permanent CMW license: Enabling WinIQSIM2 Waveforms, CDMA2000

KW880     Permanent CMW license: Enabling of WinIQSIM2 Waveforms, 1xEV-DO

P752         CMW270 WiMAX Communication Tester, Mainframe 01

PK500       Associated Signaling (network emulation) LTE FDD

PS502       CMW500 Wideband Radio Communication Tester, Mainframe

R3    Three years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.

R5    Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.

S550A      CMW selection: H550A Baseband Interconnection Board (fixed link)

S550B       CMW selection: H550B Baseband Interconnection Board (flexible link)

S590A      CMW selection: H590A RF Frontend Module

S600A      CMW500 selection: H600A Frontpanel Without Display/Keypad (contains DVI interface)

S600B       CMW500 selection: H600B Frontpanel With Display/Keypad

XT015       Permanent CMW license: Development environment for CMW500
